BESS-T 125-271
Two level BMS built-in. Intelligent thermal management system IP55 fire and explosion proof cabinet. Fire proof devices in each modular and in the cabinet. Easy for on site installation
System Topology
Key Advantages
- Advanced air duct optimization design combined with multiple cooling control strategies including intelligent fans, heating elements, air-conditioning cooling, and patented air duct design ensures uniform airflow distribution and efficient heat dissipation across the battery system. The system maintains balanced battery temperature distribution with cabin temperature difference ≤ 5°C, operating reliably under a wide environmental humidity range of 5%–95% RH (non-condensing). This provides stable temperature management comparable to liquid cooling solutions while maintaining a more economical system structure, improving reliability and reducing total ownership costs over the 15+ year lifecycle.
- High-density polyurethane insulation structure (6cm thick) combined with IP55 protection design and dual-layer sealing strips significantly improves environmental adaptability and reduces external temperature impact on the battery system. The system supports stable operation from -30°C to +60°C with no derating required below 2,000m altitude, and the cabinet passes C5-level heavy corrosion certification. This ensures that supporting assets can operate in extreme environments including islands, deserts, and coastal high-salt areas for more than 18 years with zero maintenance costs from environmental degradation.
- Built-in advanced EMS demand prediction algorithm capable of accurately capturing the distribution load curve at high frequency, actively offsetting electricity load during peak periods. The system achieves continuous 125kW active power stepless regulation, reducing the maximum demand of the distribution network by 15%–25%. It supports flexible parallel connection of multiple standardized units at the AC side with standardized module design enabling rapid deployment within 15 minutes. The "on-demand investment and phased expansion" strategy optimizes initial capital expenditure while providing a clear growth path for commercial and industrial customers.
Product Dimensions
Loading specifications...

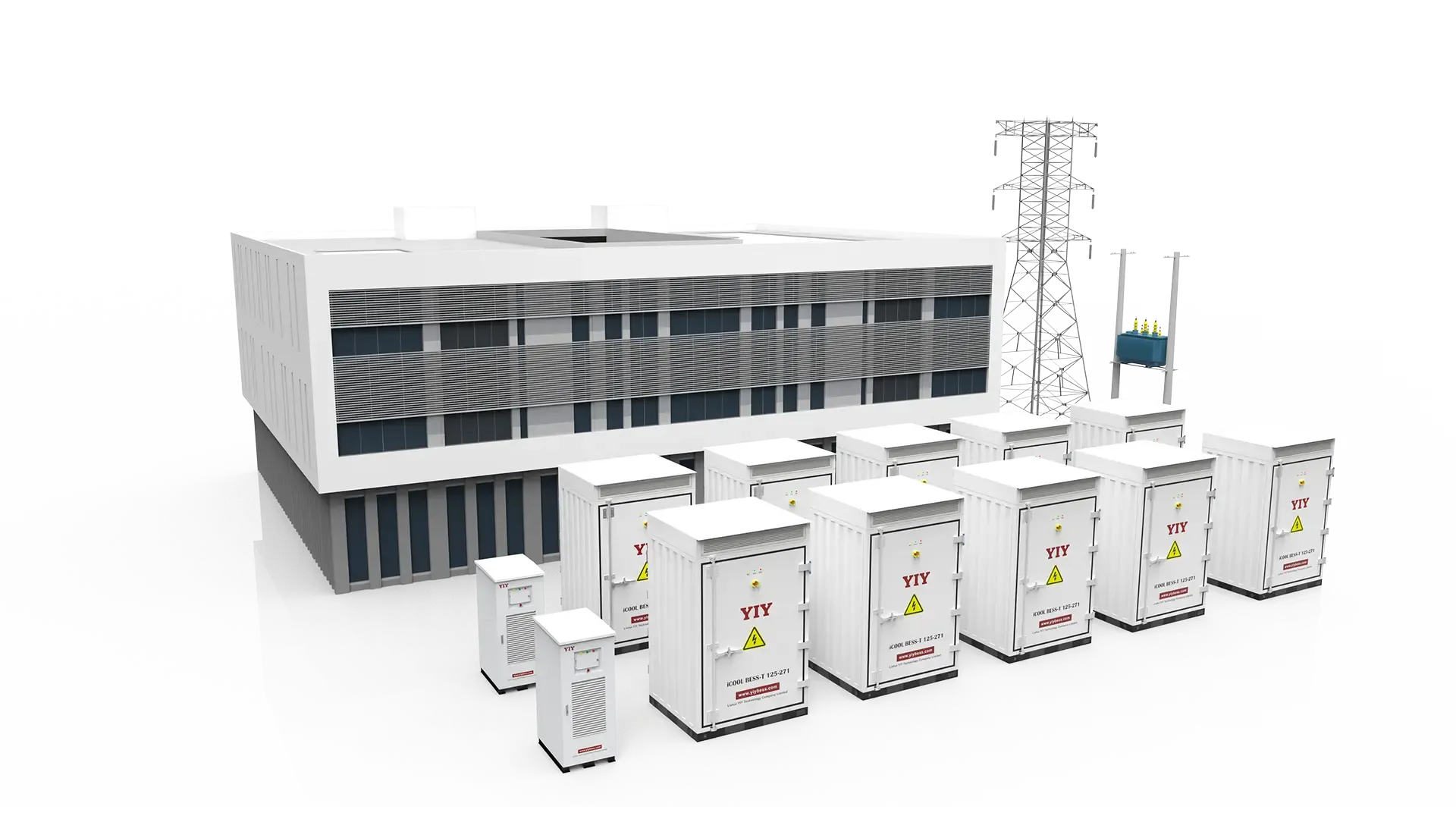

BESS-T 125-271 125kW/271kWh Energy Storage System
- Grid-connection
- Islanding protection only
- No PV
