BESS-T 125-271-120W
This system adopts a DC-coupling architecture and anti-backflow design, integrating energy management system (EMS), bidirectional inversion, MPPT PV control, and a high-precision Battery Management System (BMS). It is equipped with long-cycle LFP batteries to form an integrated energy storage unit. The system executes the intelligent energy scheduling strategy on a 24-hour cycle: solar power is prioritized for on-site consumption, with surplus energy stored. During insufficient sunlight or high electricity prices, the battery discharges to support the load, achieving "self-generation and self-consumption, surplus storage." Additionally, the system features virtual power plant (VPP) node functionality, enabling remote response to grid dispatch and participation in services such as peak shaving demand response. In the event of grid anomalies, it can switch to off-grid mode to ensure local power supply. Through the coordinated operation of generation, storage, consumption, and grid interaction, the system ultimately delivers 3 core values: improved energy economics, enhanced power reliability, and support for grid stability—providing users with an efficient, flexible, and resilient green energy solution.
System Topology
Key Advantages
Technical Advantage: Integrated temperature and humidity management system combining intelligent fans, heating elements, air-conditioning cooling, and patented air duct design to achieve efficient thermal control.
- Performance Indicators: The system operates reliably under a wide environmental humidity range of 5%–95% RH (non-condensing), ensuring stable battery performance in various climates.
- Customer Value: Provides stable temperature management comparable to liquid cooling solutions while maintaining a more economical system structure, improving reliability and reducing total ownership costs.
Technical Advantage: Advanced air duct optimization design combined with multiple cooling control strategies ensures uniform airflow distribution and efficient heat dissipation across the battery system.
- Performance Indicators: Maintains balanced battery temperature distribution and minimizes temperature differences between battery cells, supporting safe and stable operation under high-load conditions.
- Customer Value: Extends battery service life through effective thermal management while providing a cost-effective alternative to liquid cooling systems.
Technical Advantage: High-density insulation structure combined with IP55 protection design improves environmental adaptability and reduces external temperature impact on the battery system.
- Performance Indicators: Supports stable operation from -30°C to +60°C, improving system reliability in extreme temperature environments.
- Customer Value: Reduces auxiliary energy consumption and protects critical components, ensuring long-term stable operation in outdoor applications.
Product Dimensions
Loading specifications...

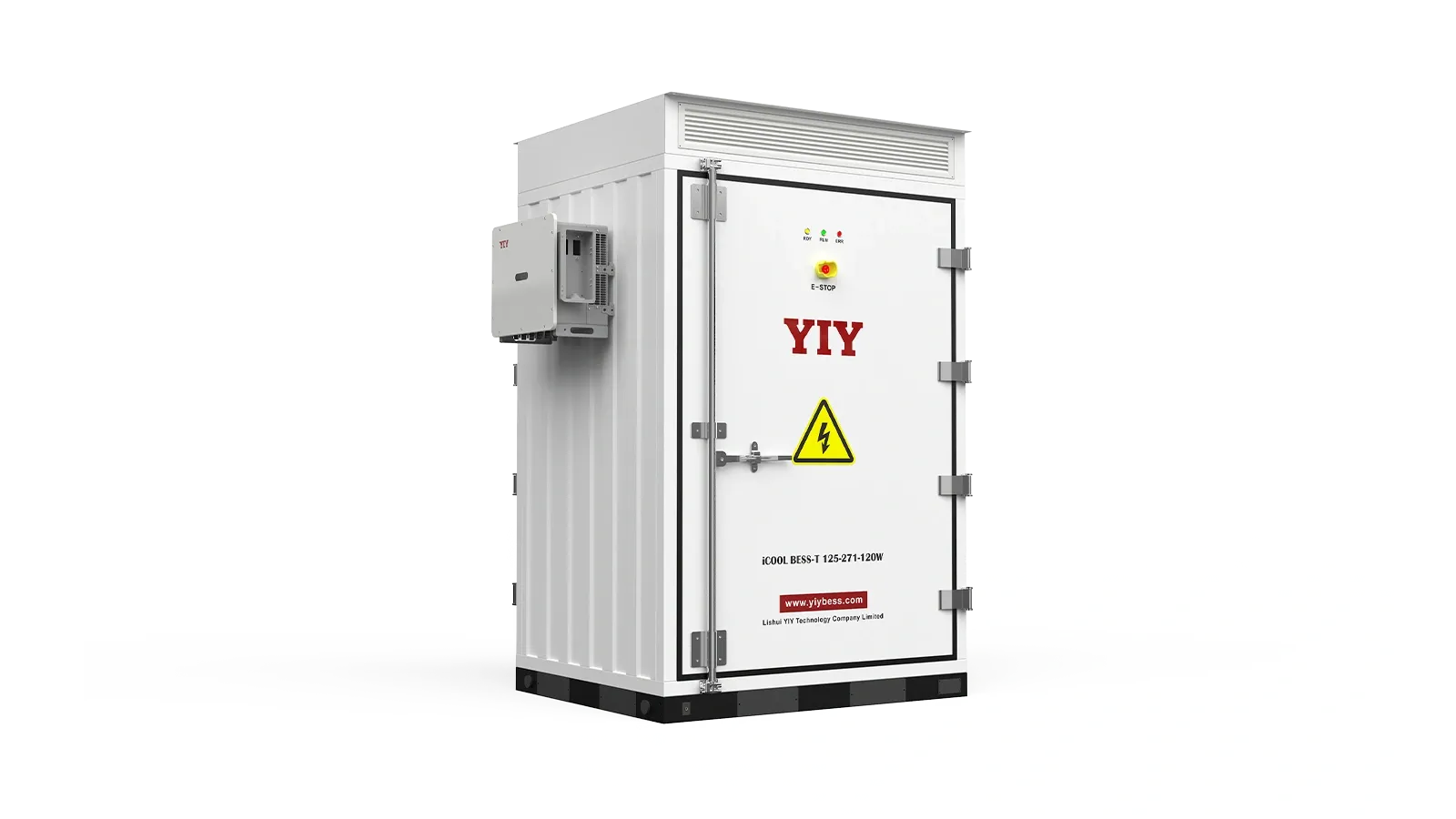

BESS-T 125-271-120W Solar Battery Energy Storage System
- VPP
- Self-consumption
- Off-grid operation (black start)
Frequently Asked Questions
The equipment operates stably in extreme temperatures from –30°C to +60°C. No derating is required at altitudes up to 2000 meters. The cabinet features 6 cm thick high‑density polyurethane insulation and IP55‑rated dual‑layer sealing strips. The built‑in iCOOL intelligent humidity control system actively regulates the internal relative humidity, effectively preventing condensation and physically eliminating the conditions for moisture formation.
Cell level – 314Ah laminated cells with a thermal runaway trigger temperature over 15°C higher than industry peers. Environmental level – iCOOL active dehumidification achieves zero condensation, eliminating high‑voltage arc flash risks at the source.System level – PACK modules are fully sealed with encapsulation technology, ensuring zero liquid leakage and water ingress.The system is designed for high reliability and requires no routine maintenance over its full lifecycle.
Based on a 800VDC high‑voltage DC‑coupled topology, PV power directly charges the battery without AC‑DC secondary conversion, which significantly improves PV utilization. The system efficiently consumes rooftop solar energy, thereby increasing annual green electricity revenue.
